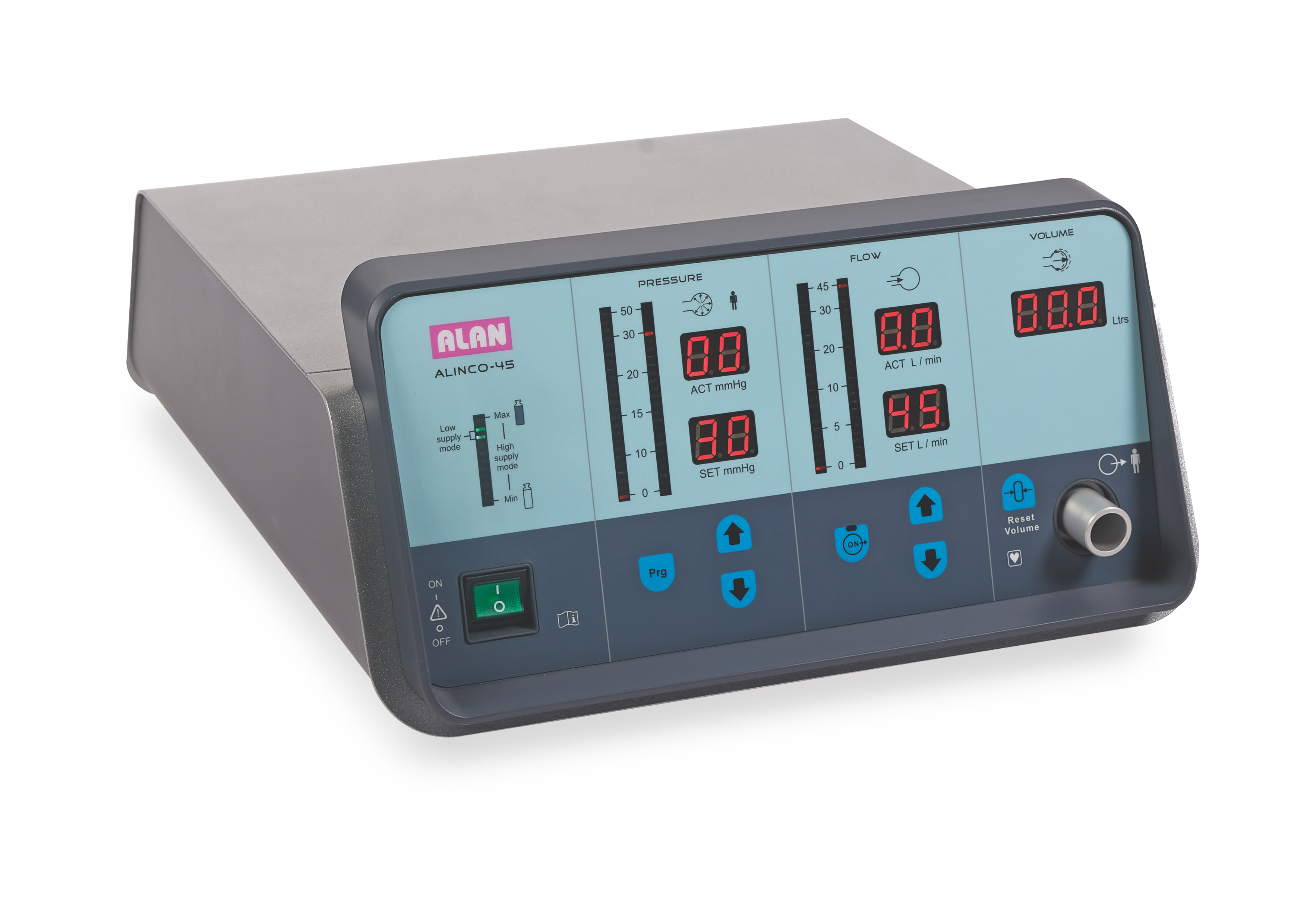

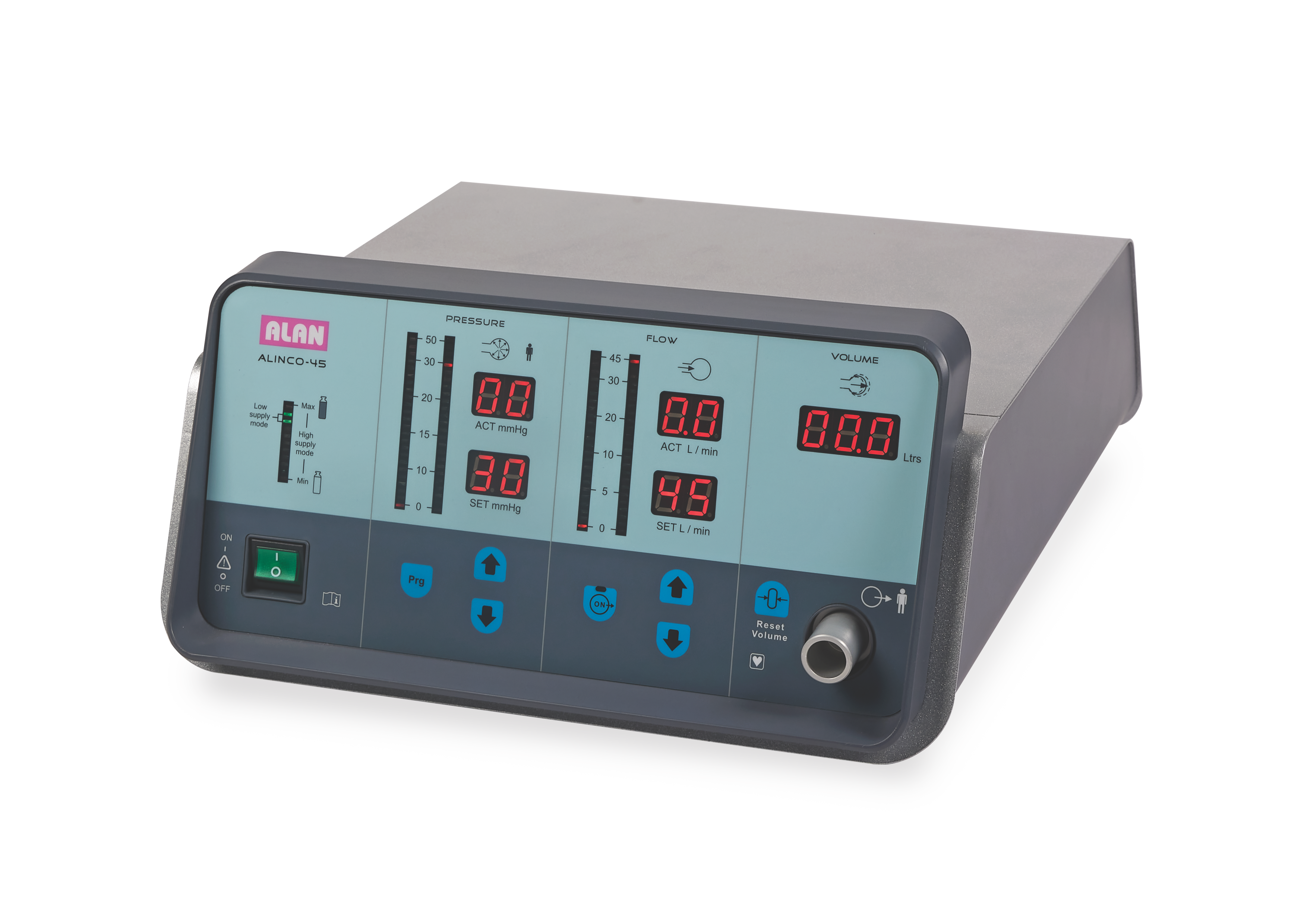

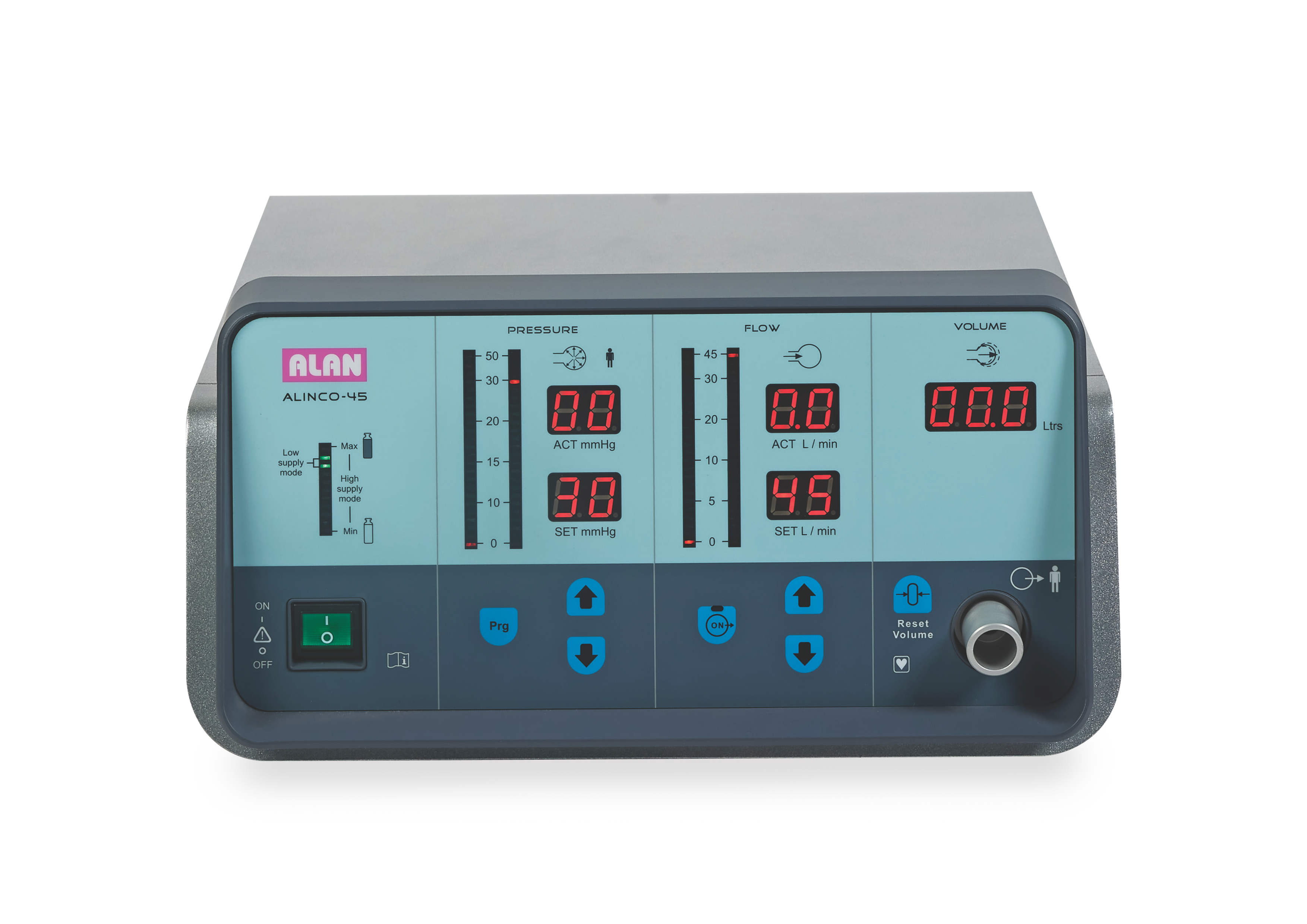

ALINCO – 45
FEATURES:
- Advanced micro controller based technology.
- Ideal for all Laparoscopic surgeries including pediatric surgeries
- Preheating gas mechanism to minimize the condition of Hypothermia
- Independent display for set pressure and actual pressure
- In bar graph and digital display
- Independent display for set flow and actual flow in bar graph and digital display
- Flow settable 0.1 to 45 LPM Pressure settable 1 to 30mmHg.
- 9 User program memories for different surgeries as per Surgeon’s preference.
- Realtime pressure and flow control.
- Power up selftest to ensure, unit healthiness. Easy flow “ start/stop ” control
- Ergonomic design
- Separate key for volume reset
Operating Parameters
- Temperature range:+10° C to +40° C
- Relative humidity:30% to 75% non-condensing
Surgical Use
- Paediatric surgeries
- bariatric surgeries
- Lap/Gynace surgeries
Safety Features
- Basic construction : In accordance with IEC 60601-1 and IEC 60601-1-2
- Protection Class: 1
- Unit type : CF
- Electrical potential balancing: Indicated by symbol
-
Technical Specification
| Input Supply |
88 VAC – 275 VAC |
| Line Frequency |
50Hz / 60 Hz |
| Max. Flow |
45 Liters |
| Power Consumption |
300 VA Max. |
| Input Fuse |
3.15A T |
| Gas Type |
Co2 liquified |
| Inlet Pressure |
70 bar max. |
| Dimensions (in mm) |
420(L) x 340(W) x 160(H) |
| Weight |
7 Kg (max.) |
