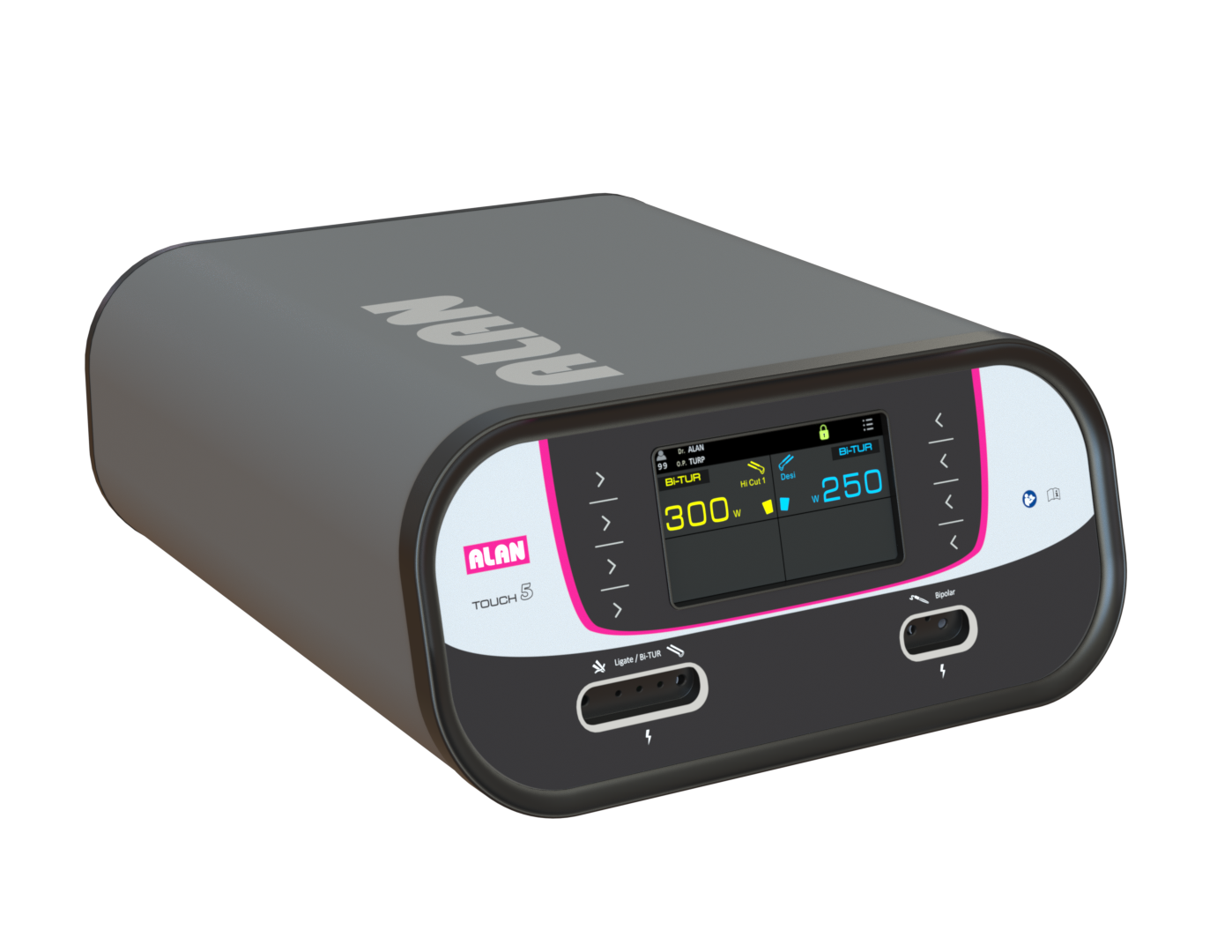

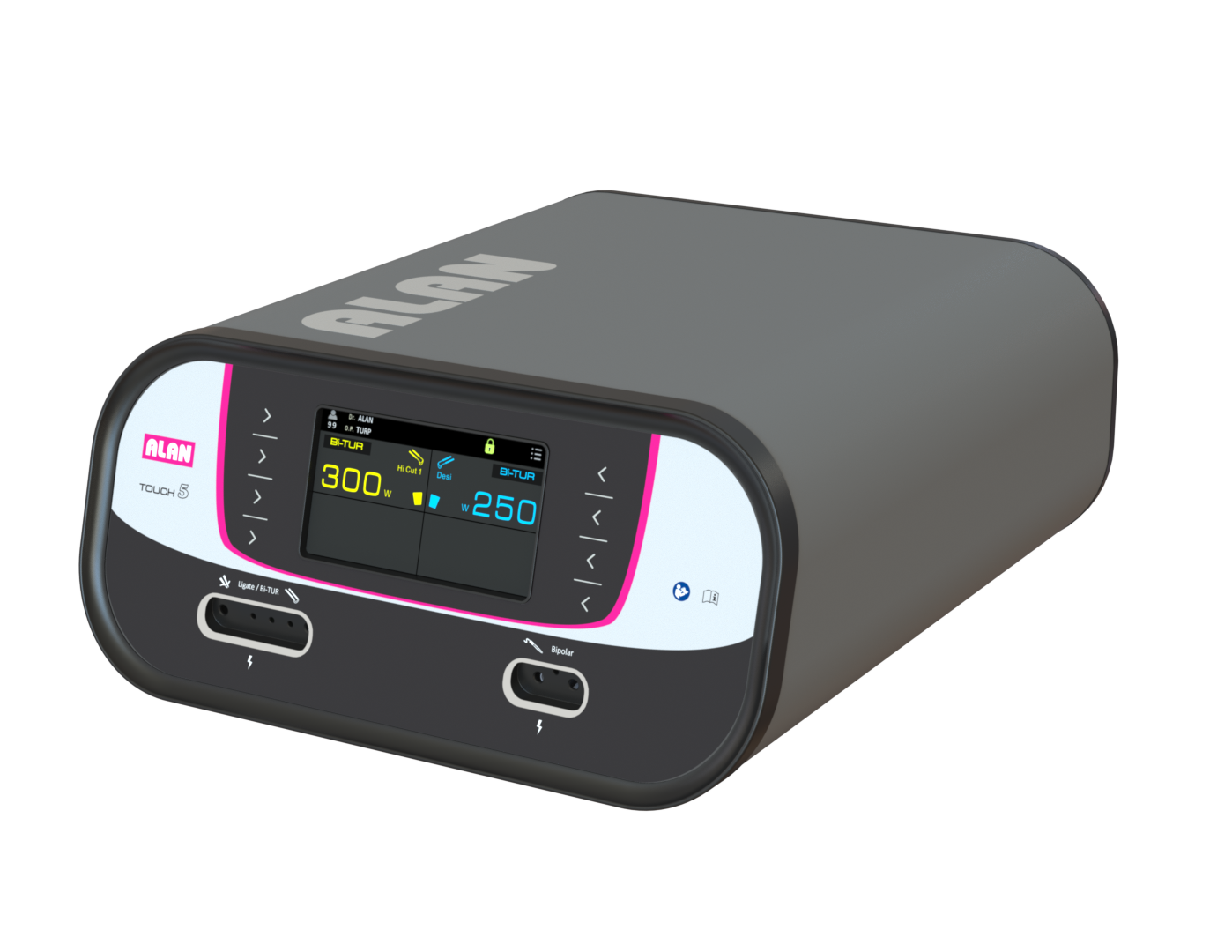

PLASMA
- An Exclusive Generator, Tailored and dedicated only for Bipolar & Bipolar Saline based surgeries
- Advance multiple microcontroller based generator for Open and Laparoscopic Surgeries.
- 5-inch LCD touch screen display with intuitive interface, and additional feather touch buttons.
- Intuitive User Interface facilitates easy program and modes selection with Seamless Operations.
- It Features One Bipolar and One Bi-TUR Socket, for Handswitch/FootPedal without Change Over
- “Self-Test”, diagnoses at every “START UP” for Generator’s Healthiness & Operational Integrity.
- Touchscreen auto-lock facility to protect modes & power settings from accidental human touch.
- HF power output can be adjusted using touch screen and handswitch pencil from sterile field.
- Multiple cutting modes with varied regulated wattages for smooth and precise skin incisions.
- Isolated Bipolar and Saline Bipolar Resection Outputs, for a dedicated & specialized surgeries
- It offers multiple coagulation modes specifically dedicated for Bipolar Saline Resection Surgeries
- Tissue monitoring technology measure Tissue Impedance & Dynamically varies the HF Output.
- Auto feature in Bipolar ensures Optimum Power Delivery and Efficacy, without Tissue Charring
- Automatically stops the power output and provides audio-visual indication during problem.
- System restores previous activated power settings when encountered power interruptions.
- “Current Meter Display” in the Bipolar Mode to Indicate the “Flow of Current” during surgeries.
- HF current leakage monitoring & controlling system supervises and controls it less than 10 uA.
- 99+1 user programmable memory for surgeons. to store & recall surgery preferences and details.
- Different activation tones for Bipolar
Cutting/Coagulation and Resection/Coagulation.
- It is Compatible with ALAN’s Wired and Wireless Footswitch, for smooth & convenient operation.
Description
Bipolar Cut Modes:
- LoCut : 120 W @ 100 Ohms CF 1.5
- HiCut : 120 W @ 100 Ohms CF 1.5
- ScalCut : 200 W @ 100 Ohms (5 Levels) CF 1.5
Bipolar Coagulation Modes:
- Cut/Standard : 120 W @ 100 Ohms CF 1.5
- Macro/Force : 120 W @ 100 Ohms CF 1.5
- Micro/Precise : 100 W @ 100 Ohms CF 1.5
- Auto Micro: Bipolar Micro with Auto-Stop
- Auto Start: Auto-Start, Auto-Stop
Bipolar Saline Resection:
- LowCut : 250 W @ 200 Ohms CF 1.5
- HiCut 1: 300 W @ 200 Ohms CF 1.5
- HiCut 2: 300 W @ 200 Ohms CF 1.5
Bipolar Saline Coagulation:
- Desi : 250 W @ 25 Ohms CF 1.5
- Force: 250 W @ 25 Ohms CF 2.1
Safety Standards
- Basic Construction : As per IEC 60601-1, IEC 60601-1-2 & IEC 60601-2-2
Classifications
- Protection Class : I
- Mdd. Class : II b
- Pollution degree Class : II
- Overvoltage category Class : II
- Unit Type : CF
- All Outputs : Floating Output (All output ports are CF Type)
- Electrical Potential Balancing : Connecting Pin and Indicated by Symbol
- PER : 98
- Dimension : 335mm (W) x 160mm (H) x 395mm (D)
- Weight: Maximum 8.0 Kg
Operating Parameters
- Ambient temperature range: +10° C to +40° C
- Relative humidity: 30% to 75% non-condensing
- Atmospheric pressure: 700 millibars to 1060 millibars
Transport and Storage
- Ambient temperature range : -30° C to +65° C
- Relative humidity: 0% to 90% non-condensing
- Atmospheric pressure: 500 millibars to 1060 millibars
