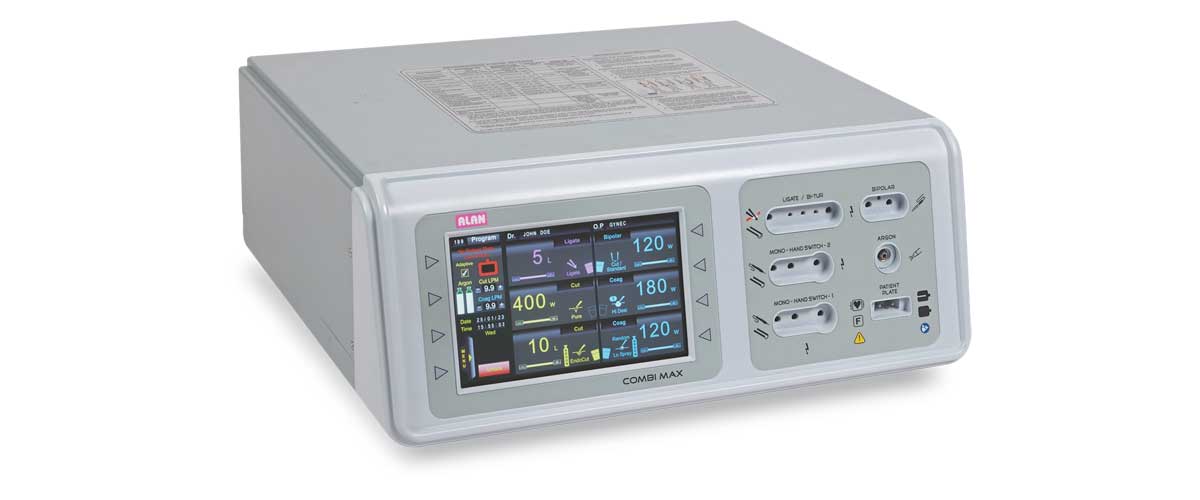

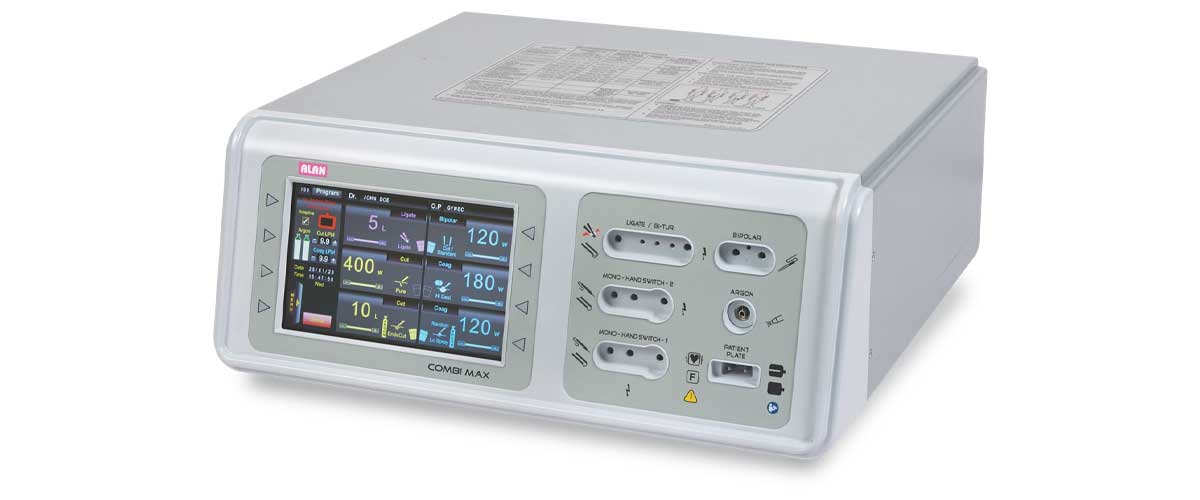

COMBI MAX SERIES
COMBI MAX SERIES - Image 2
COMBI MAX SERIES - Image 3
COMBI MAX SERIES - Image 4

COMBI MAX SERIES

GENERAL FEATURES :
  • Maximum output of 400 Watts
  • 7 inch wide angle LCD touchscreen display for better view & usability
  • 199 user programmable memory locations for profile & preferred setting.
  • Single screen for Operation of Monopolar, Bipolar & Ligation.
  • Unit can seal up to 7 mm of vessel thickness in diameter.
  • 7 different ligations levels for varied vessel thickness and results
  • Audio-visual indication for sealing and real-time instrument usage.
  • ScalCut, a special cut mode designed for Plasma Bissector.
  • Efficient Bi-TUR system with instant plasma generation for smooth and easy resection.
  • Dedicated 2 coagulation modes for surgeon’s ease of application.
  • Inbuilt Argon Plasma Coagulation system for Endoscopic & Open procedures.
  • Dual Argon Cylinder Connectivity with real-time argon gas level indication.
  • Real-time Argon gas level indication for 2 Cylinders
  • Simultaneous coagulation facility in Monopolar with independent settings
  • Special EndoCut mode for polypectomy, papillotomy with 10 adjusting levels
  • User adjustable blend ratio from 10% – 90% (17 Steps) in Monopolar
  • Auto Start-Auto Stop mode in Bipolar for optimum coagulation effect.
  • PPCM deactivates output power if it senses improper contact between patient & return electrode to eliminate the risk of patient burn
  • Unit is compatible with Single, Double & Three Pedal Footswitch.
Category:

Description

Combination of
  • Vessel sealing System
  • Monopolar TUR.
  • Monopolar.
  • Bipolar Saline TUR.
  • Argon Plasma Coagulator
  • Bipolar.



 MODEL COMPARISON
Description MBXXX MBAXX MBXVX MBAVX MBXXP MBAXP MBXVP MBAVP
Monopolar Present Present Present Present Present Present Present Present
Bipolar Present Present Present Present Present Present Present Present
APC Present Present Present Present
Vessel Sealer Present Present Present Present
Bi-TUR Present Present Present Present



Monopolar Bipolar Vessel Sealer Bi-TUR
Pure – 400W Cut / Standard – 120W Ligate – 7 Levels LowCut – 250W
LapCut – 300W Macro / Force – 120W – Hi-Cut1 – 300W
Blend – 250W Micro / Precise – 100W – Hi-Cut2 – 300W
EndoCut – 10 Levels Auto Macro – Hi-Cut3 – 300W
i-Cut – 100 Levels Auto Micro – Effect1 – 300W
V-Cut -300W Auto Start – Effect2 – 300W
LoSpray – 120W LowCut – 120W – Dessicate – 250W
Hi Spray – 70W HighCut – 120W – Force – 200W
Fulgurate – 150W ScalCut ‒ 5 levels – –
Lo Desi – 120W – – –
Hi Desi – 180W – – –
Soft – 120W – – –
Auto Desi – – –
Auto Soft – – –



Reliability

  • Power up Self-Test to ensure unit healthiness.
  • Real time tissue impedance monitoring for power control.
  • Multiple microcontroller supervision for RF power accuracy.
  • Audio and Visual indication for easy interpretation.
  • Different audible tones for activation, warning etc.
  • Light indication for split or non-split patient plate connection.
  • User settable maximum RF activation Timeout limit.
  • Warnings & Errors, stored with timestamp for reviewing.
  • Graphical representation to monitor contact quality.

Applications

  • Thoracic Surgery
  • Gynaecology
  • Liver Surgery.
  • Laparoscopy & Pelviscopy
  • TURP, TUVP, TUEB, TCRE etc.
  • Gastroenterology.
  • Cardiac Surgery
  • Plastic & Reconstructive Surgery
  • Casualty & General Surgeries
  • Underwater Surgery

Safety

  • Unit can work with input voltage of 230 VAC.
  • High Frequency Leakage monitoring and controlling system.
  • Equipotential port for ground connection.
  • Built-in-line filter protects from voltage surges/bad line conditions.
  • Built-in-line filter protects from voltage surges/bad line conditions.
  • Convection cooling system offers better unit’s life.
  • PPCM – Patient Plate Contact Quality Monitoring System.
  • Autolock facility to prevent accidental change of settings.
  • Port ON/OFF control to prevent accidental RF activation

Output Characteristic

Monopolar Cut Modes

  • Pure: 400 Watts @350 Ohms, CF 1.5
  • Lapcut: 300 Watts @350 Ohms, CF 1.5
  • Blend: 250 Watts @350 Ohms, CF Variable
  • EndoCut: 10 Levels, CF Variable
  • 200 Watts @300 Ohms
  • i-Cut: 10 Levels, CF Variable
  • 200 Watts @300 Ohms
  • V-Cut: 10 Levels, CF 1.5
  • 300 Watts @350 Ohms

Monopolar Coagulation Modes

  • Lo Spray: 120 Watts @500 Ohms, CF 9
  • Hi Spray: 70 Watts @1000 Ohms, CF 12.5
  •   Fulgurate: 150 Watts @500 Ohms, CF Variable
  • Lo Desi: 120 Watts @500 Ohms, CF Variable
  • Hi Desi: 180 Watts @500 Ohms, CF Variable
  • Soft: 120 Watts @150 Ohms, CF 1.5
  • Auto Desi Auto
  • Auto Soft Auto

Bipolar Modes

  • Cut: 120 Watts @100 Ohms, CF 1.5
  • Macro: 120 Watts @100 Ohms, CF 1.5
  • Micro: 100 Watts @100 Ohms, CF 1.5
  • LowCut: 120 Watts @100 Ohms, CF 1.5
  • HighCut: 120 Watts @100 Ohms, CF 1.5
  • Auto Macro: Bipolar Macro Mode With Auto Stop
  • Auto Micro: Bipolar Micro Mode With Auto Stop
  • Auto Start: Bipolar Micro Mode With Auto Start And
  • Auto Stop

Bi-TUR Cut

  • Low Cut: 250 Watts / 200 Ohms, CF 1.5
  • Hi Cut 1: 300 Watts / 200 Ohms, CF 1.5
  • Hi Cut 2: 300 Watts / 200 Ohms, CF 1.5
  • Hi Cut 3: 300 Watts / 200 Ohms, CF 1.5
  • Effect 1: 300 Watts / 200 Ohms, CF Variable
  • Effect 2: 300 Watts / 200 Ohms, CF Variable
  • Bi-TUR Coagulation
  • Desiccate: 250 Watts / 25 Ohms, CF Variable
  • Force: 200 Watts / 25 Ohms, CF Variable

Vessel Sealer

  • Ligate: 5 Levels
  • F-Ligate: 2 Levels

Max. Output

  • Maximum Power Output: 400 Watts

Technical Data

Input Supply

  • Input: 88-265 VAC, 50/60 Hz
  • Power Consumption: 750VA Max
  • Protection Class: I
  • Mdd. Class: II b
  • Input Fuse: 5A T
  • Output Control: 7″ Colour TFT Display with Touch
  • Screen and Push buttons in all Modes.

Safety Modes

  • Basic Construction: As per IEC 60601-1,
  • IEC 60601-1-2 &
  • IEC 60601-2-2,
  • Unit Type: CF
  • Electrical Potential Balancing: Connecting Pin and Indicated
    by Symbol
  • PER: 98

Environmental Factors

Operating

  • Ambient temperature range: +10° C to +40° C
  • Relative humidity: 30% to 75% non-condensing
  • Atmospheric pressure: 700 millibars to 1060 millibars
  • Warm-up time: If transported or stored at temperature outside its normal operating range , keep the unit at room temperature for one hour prior to use.

Transport and Storage

  • Ambient temperature range: -30° C to +65° C
  • Relative humidity: 0% to 90% non-condensing
  • Atmospheric pressure: 500 millibars to 1060 millibars

Weight

  • Max Weight: 8 Kg

Argon

  • Max. Inlet Pressure: 4.5 bar ( 65.25 psi )
  • Min. Inlet Pressure: 2.5 bar ( 36.25 psi )
  • Max. No. of Cylinders: 2
  • Argon Gas Purity: 99.998%
